Euclid Book 3
Proposition 33
Construction
Previous:
Euclid Book 3 Proposition 32Next:
Euclid Book 3 Proposition 34Statement
On a given line segment to describe a segment of a circle which contains an angle equal to a given angle.
Construction steps

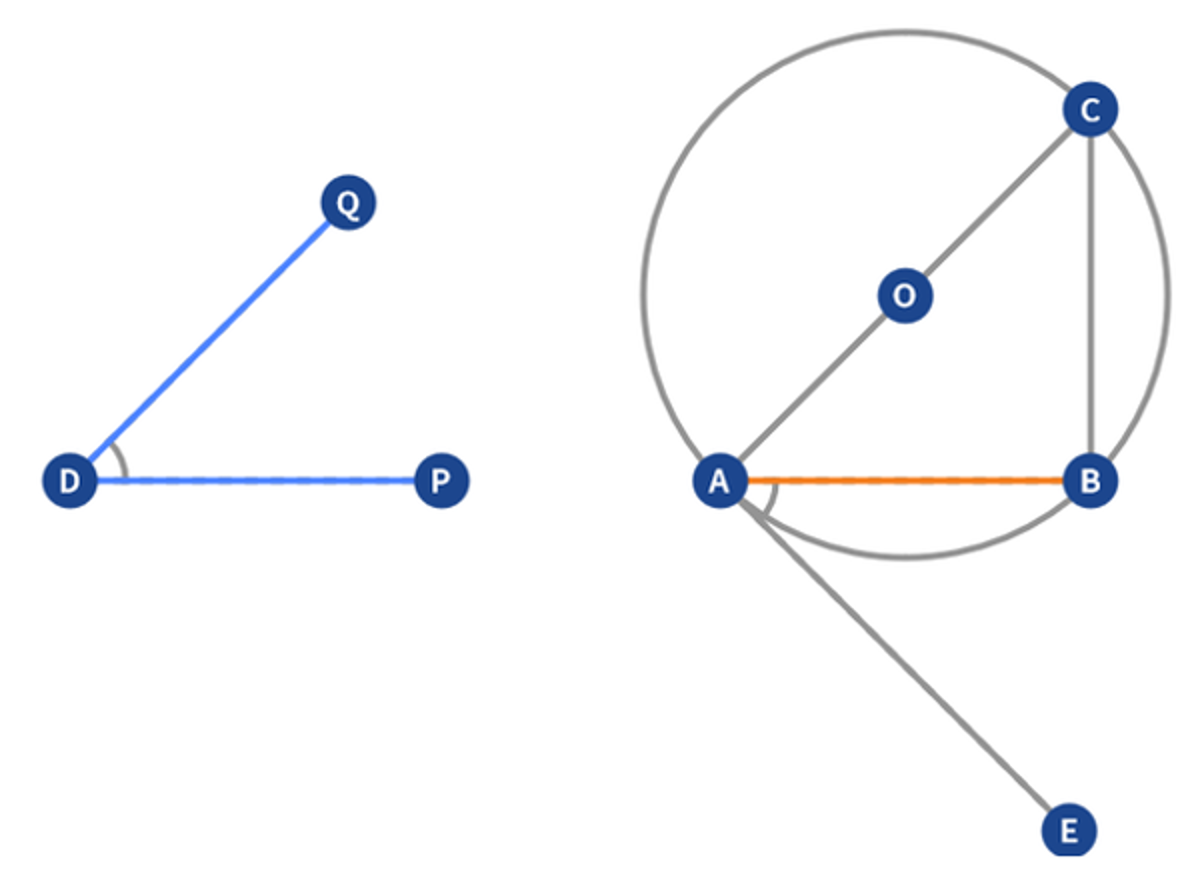

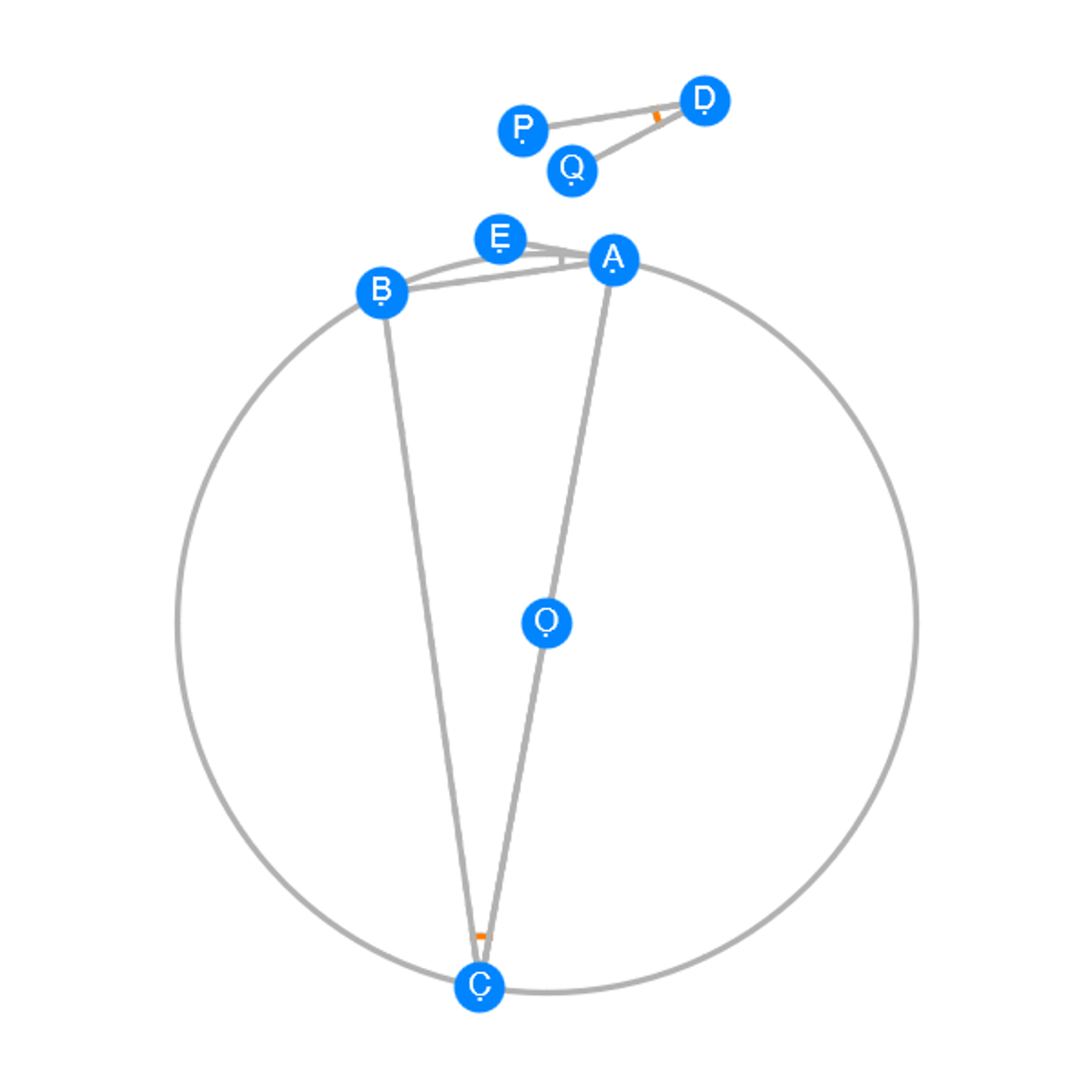

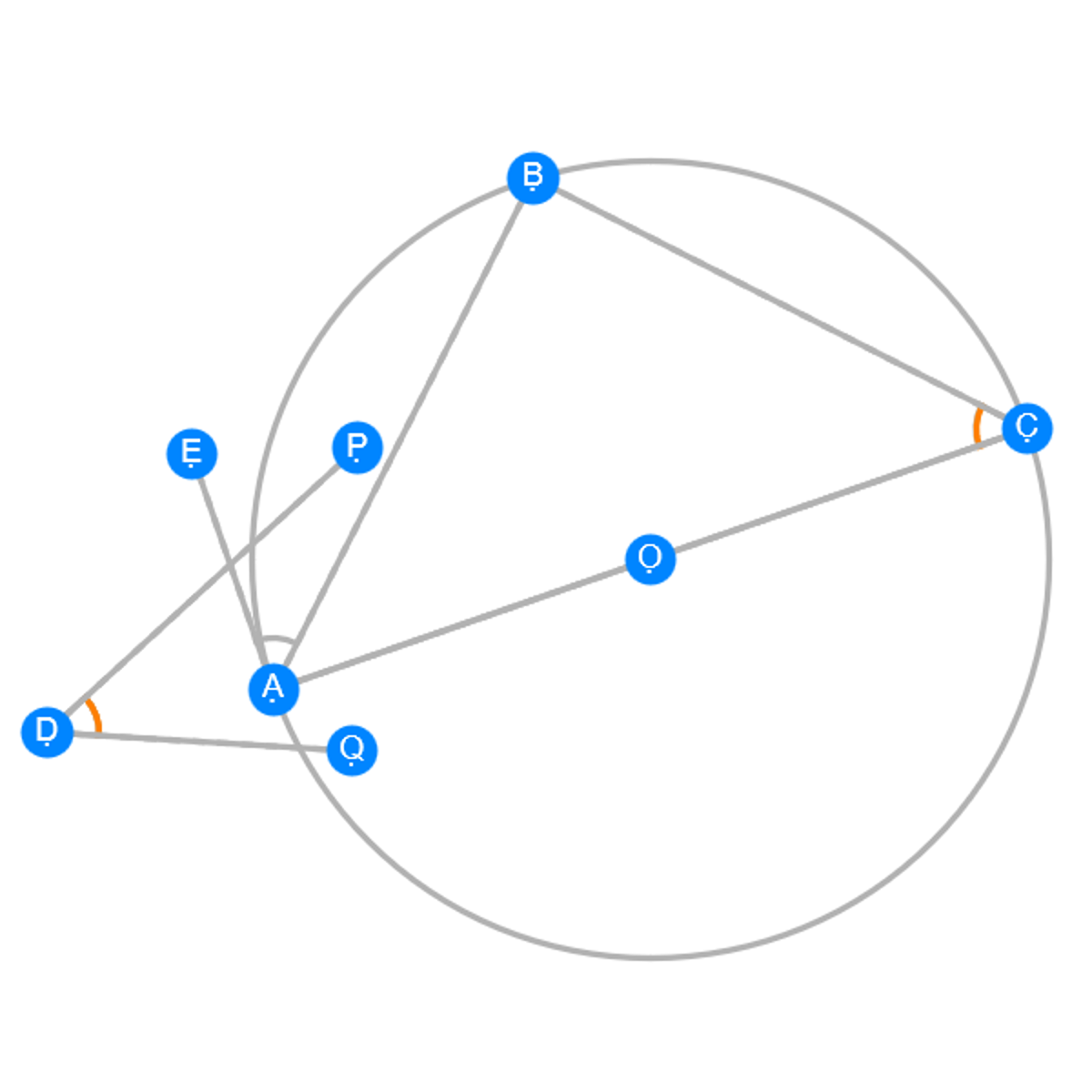

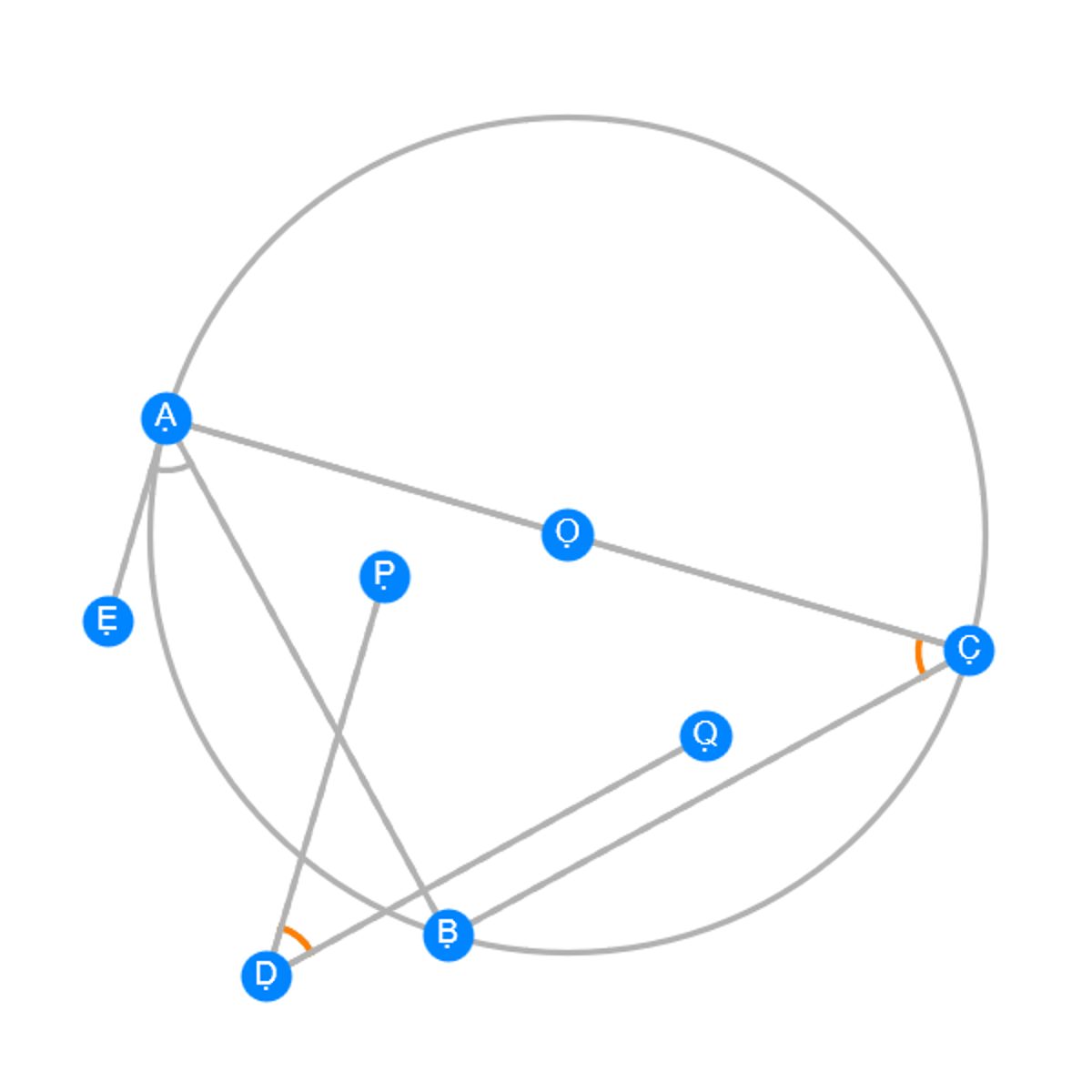

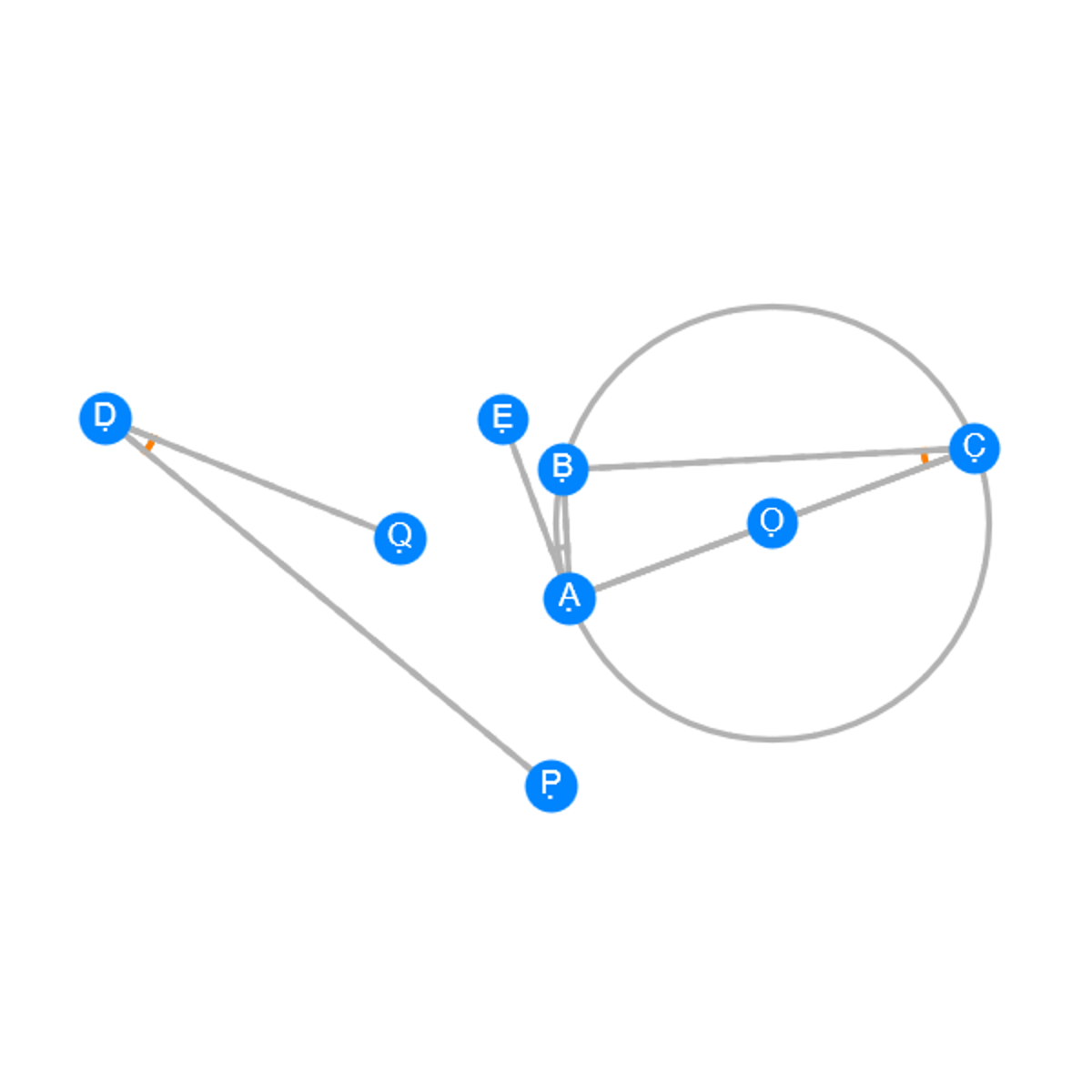

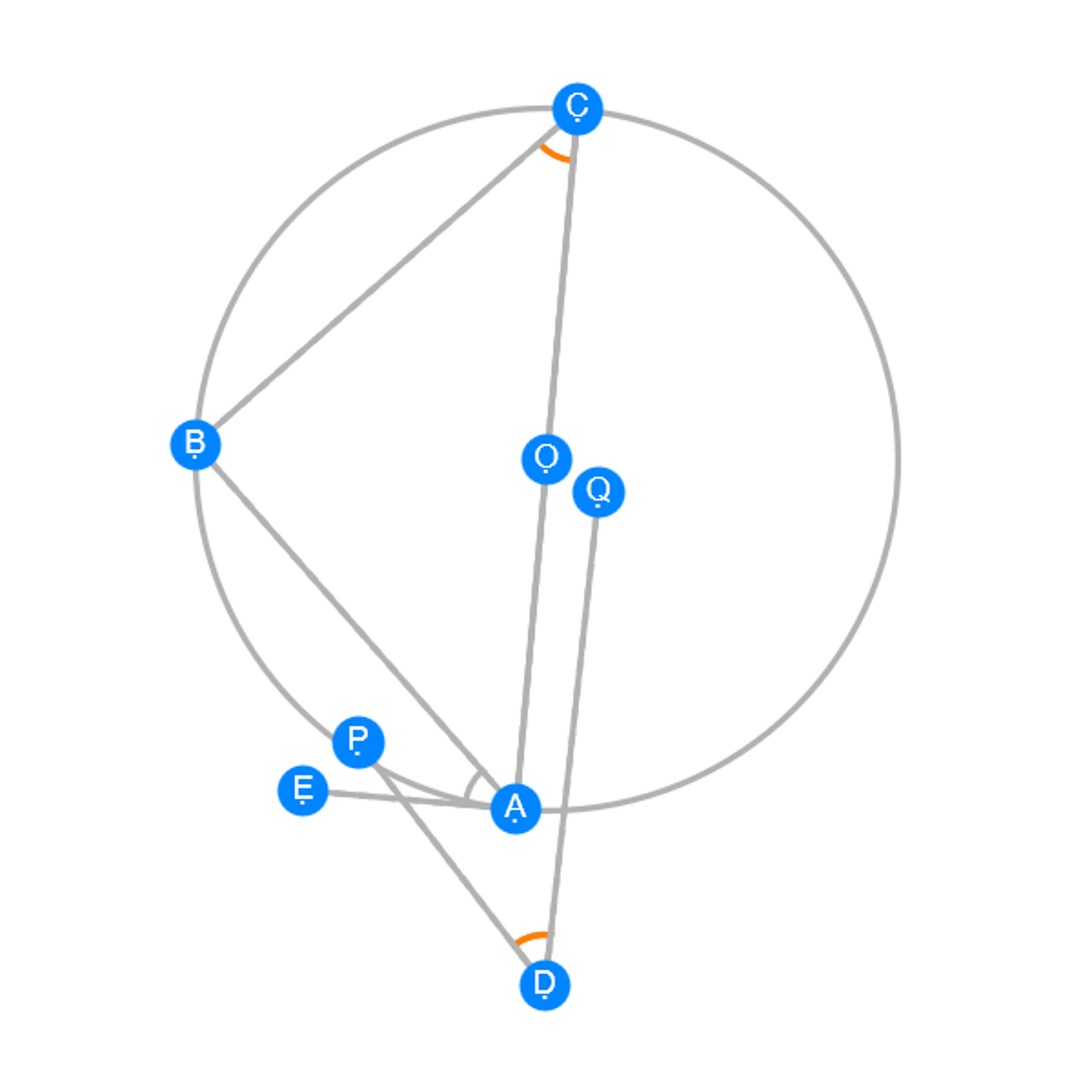

1. Let be the given line segment and ∠PDQ the given angle.
AB
2. Take A as a vertex, construct ∠BAE∠PDQ.
3. Let be perpendicular to at A, and perpendicular to at B.
CA
AE
CB
AB
4. Bisect at O.
AC
5. Construct the circle through the points AandC centered at O. On the given line segment , ∠ACB has been constructed equal to the given angle ∠PDQ.
AB
Original statement
ἐπὶ τῆς δοθϵίσης ϵὐθϵίας γράψαι τμῆμα κύκλου δϵχόμϵνον γωνίαν ἴσην τῇ δοθϵίσῃ γωνίᾳ ϵὐθυγράμμῳ.
English translation
On a given straight line to describe a segment of a circle admitting an angle equal to a given rectilinear angle.
